Single beam overhead crane

  • LDP model single girder overhead crane

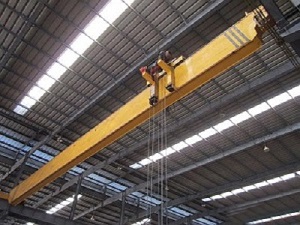

LDP model single girder overhead crane

LDP model single girder overhead crane

  • Capacity: 3~10ton
  • Span: 7.5~22.5m
  • Lifting height: 6~30m
  • Duty Class: A3/A4
  • Product description: LDP model single girder overhead crane with electric hoist
  • INQUIRY

LDP model single girder overhead crane (single girder bridge crane) is a very low headroom crane, the electric hoist is traveling on one side of main beam, so it can increase service space of hook and reduce the construction cost of workshop. This single girder overhead crane has advantages of big trolley tread, smooth travelling, tight structure, strong rigidity, delicate operation, low noise, safety and reliability and beautiful exterior, it is widely used in workshop that the headroom is very low.

This single girder overhead crane is used together with CD1, MD1 model wirerope electric hoist, the capacity from 3t to 10t, the span is 7.5m~22.5m, the duty class is A3 or A4, the working temperature is -25~+40℃, the control type is pendant pushbuttons or remote control.

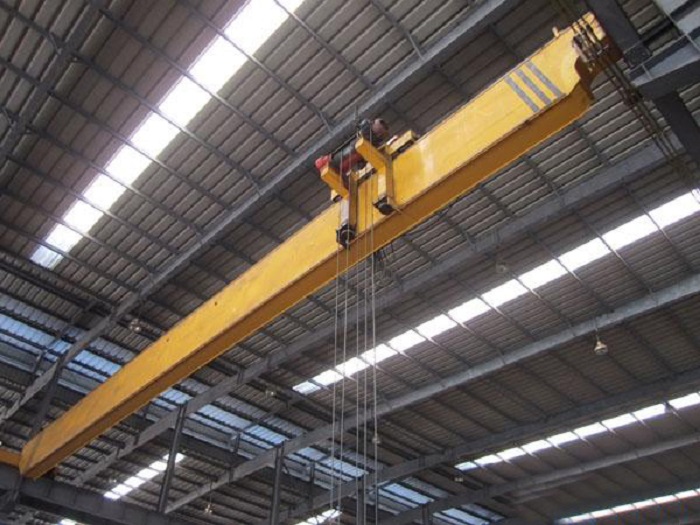

single girder overhead crane
